Generate production quality code from state diagrams created with Eclipse Papyrus#

SinelaboreRT generates readable and maintainable code from hierarchical UML state machines created with Eclipse Papyrus. It is suitable for embedded applications and for desktop/server software through additional language backends.

Key Features#

Automated robustness checks before code generation
No runtime environment needed
Works with any CPU and with/without OS or RTOS
Supports simulation, trace generation, and test-case workflows

Supported State Machine Elements#

The parser supports a practical subset of Papyrus elements:

Hierarchical states
Signal events with event name, guard, and action
Initial and final pseudo states
History states (deep, shallow)
Choices and junctions
Constraints
Regions

In addition, class attributes and methods are mapped into generated state machine data and interfaces.

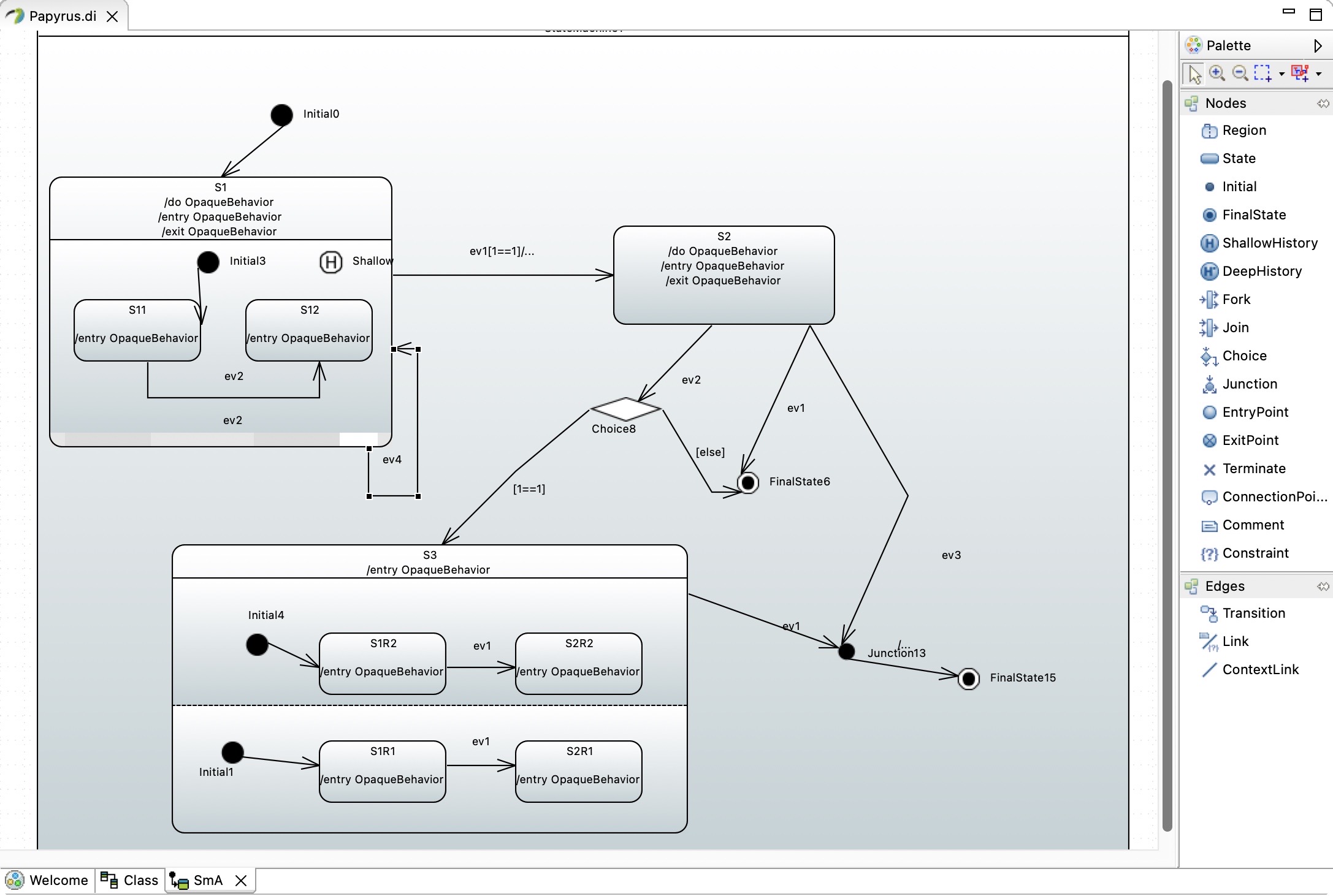

Papyrus state machine example

Quick Start#

Use the Papyrus microwave example from the examples folder, regenerate code from the model, and compile/run the sample to iterate quickly on changes.

Papyrus How-To#

Opaque behavior not visible in the diagram: check Papyrus preferences and increase the number of lines shown for opaque behavior.
Inner transition in a state: create a self-transition and set transition kind to internal.
