Generate production quality code from state diagrams created with DrawIO Desktop#

SinelaboreRT can generate state machine code from DrawIO desktop models using supported UML palette elements.

Quick Start#

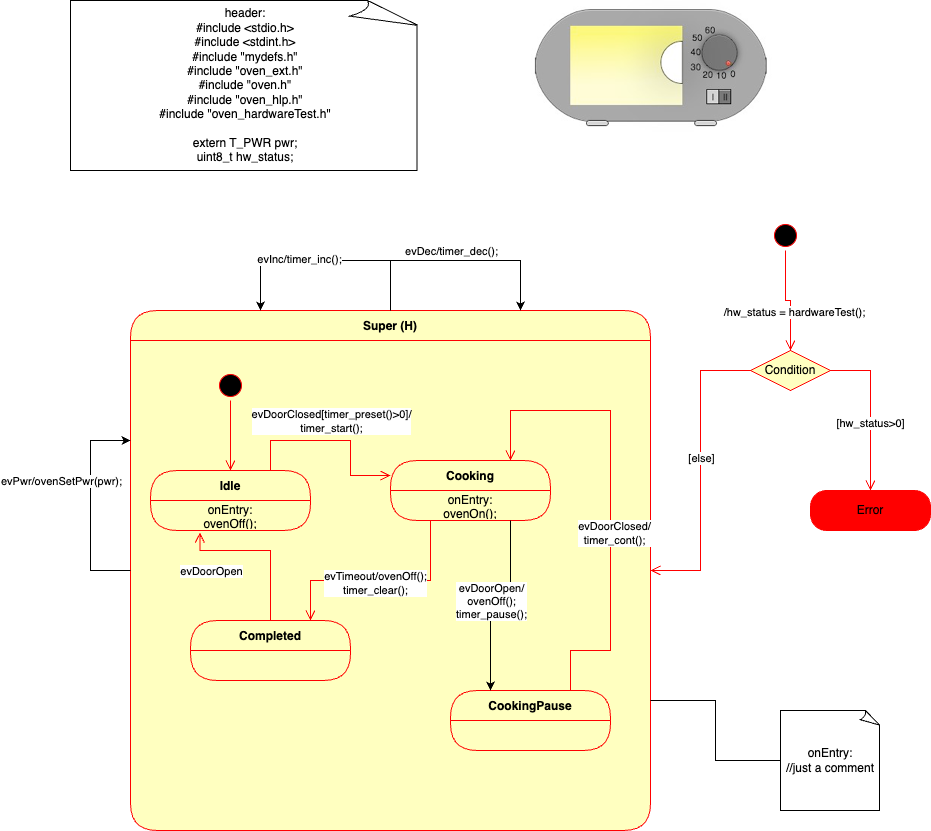

Use the microwave example from the examples folder and regenerate code from a .drawio model.

java -cp "pathToCodegenJarFolder/*" codegen.Main -p drawio -l cx -o oven oven.drawio

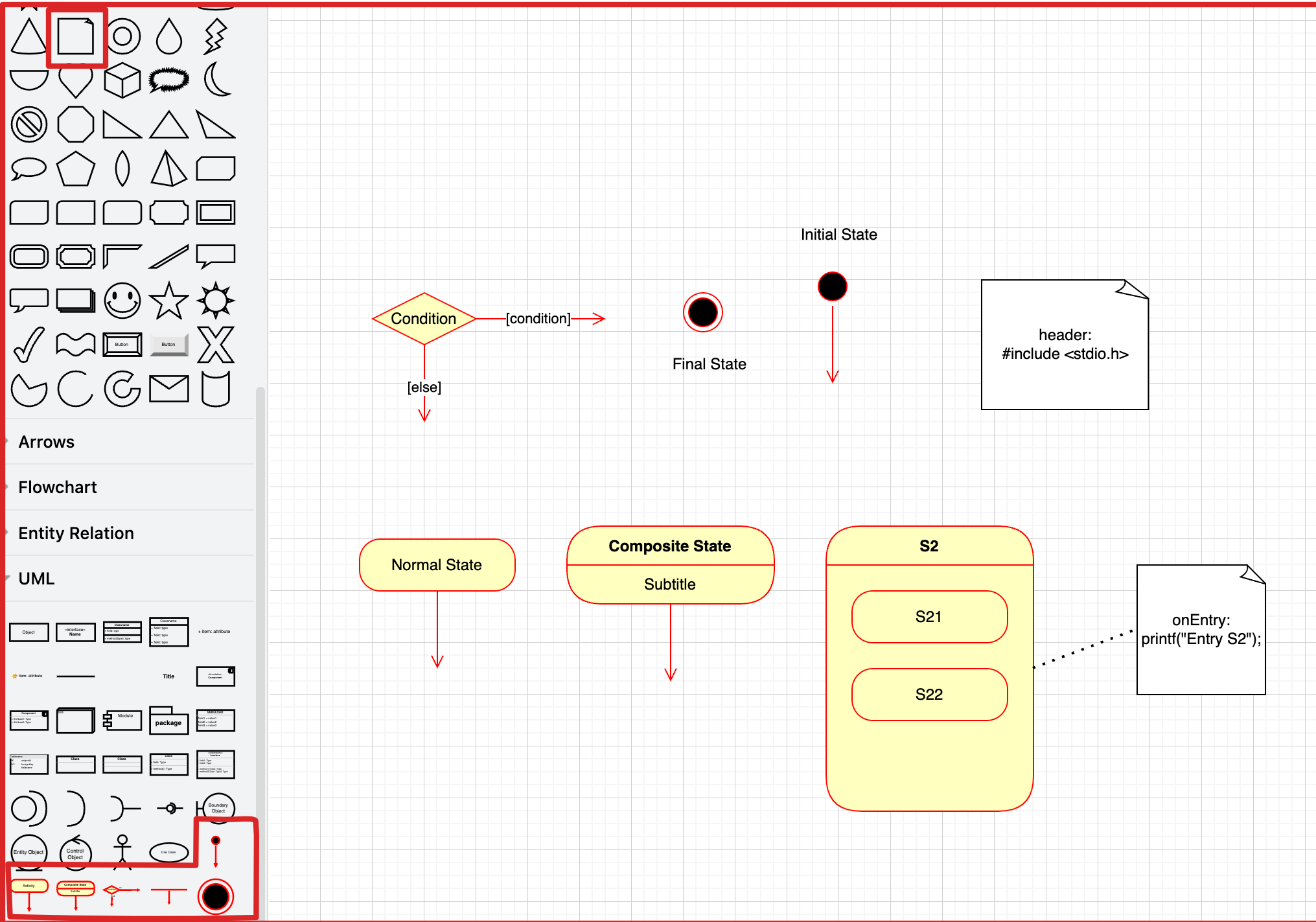

Supported Elements#

• Normal and hierarchical states
• Deep/flat history ((H*), (H) in state names)
• Initial and final states
• Signal events (name, guard, action)
• Choice and comments

Example Diagrams#

How-To Notes#

• Connect transitions on the light-green anchor points on state borders.
• Enter guards on outgoing choice transitions in square brackets.
• Use -t to select a specific diagram by name if needed.
