Using state machines with the embOS real-time operating system (RTOS)#

This article shows how to use state charts in the context of a real-time operating system. In this example the WIN32 version of embOS from Segger is used as an RTOS, so you can build, modify, and run the example yourself.

The starting point#

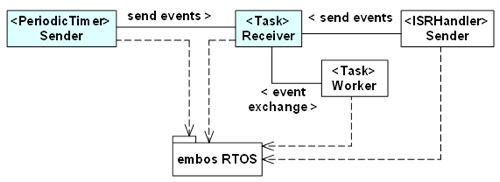

System partitioning often requires running state machines in different tasks, timer handlers, or interrupt service routines. The different state machines then typically communicate through inter-process communication mechanisms provided by the operating system, such as queues or messages (also known as active objects). The following figure shows a fictitious system with different active parts and their relation.

In this example the two blue-marked parts (a task and a timer) are modelled as state machines. The sender periodically sends different events to the receiver. The receiver task then reacts to the received events. The two state machines are kept simple and only print trace messages, which is enough to understand the design principle.

Implementation#

Step 1: Modelling the sender and receiver state machines#

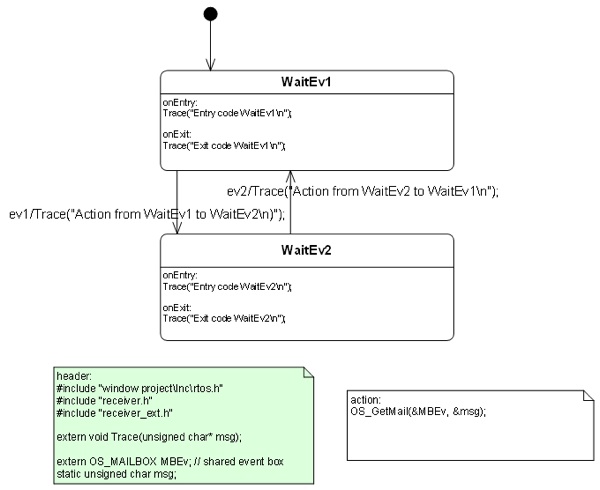

For each state machine its own UML state diagram must be developed. The diagram for the receiver is shown first. The two accepted events are ev1 and ev2. Whenever an event is received, a state change happens. The code provided after the action keyword (right note) is inserted by the code generator at the beginning of the state machine handler. This code reads the next available event from a mailbox, otherwise it blocks. The code following the header keyword (left note) is inserted at the beginning of the generated code. It includes the required header files and declares the needed variables (for example the shared mailbox).

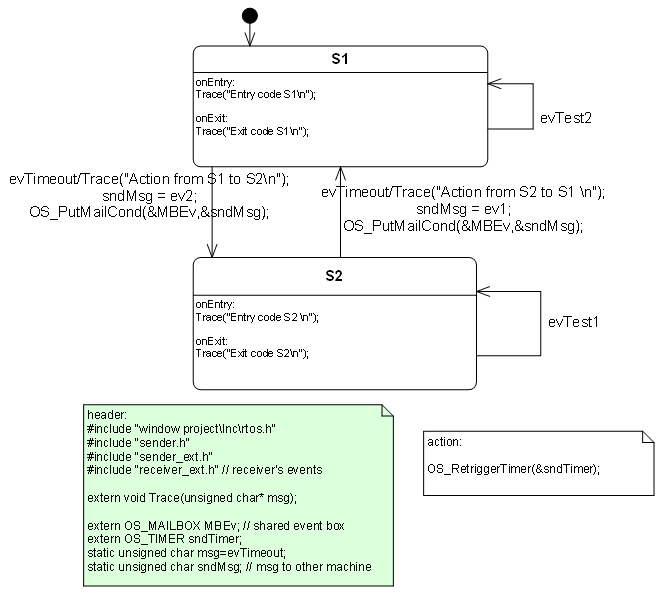

The next diagram shows the sender machine. Whenever the timer fires, a state change happens (evTimeout). The action code on the transitions puts new messages in the message box. The timer is re-triggered (see action code) after each timeout.

Step 2: Integrate the state machines#

In our example the sender state machine is called from within the embOS timer callback function.

// embOS timeout callback function
void TimerHandler(void) {
   sender(&sndInst);
}

The receiver state machine is called from the task body.

// receiver task
void Task0(void) {
   while(1){
       OS_Delay(50);
       receiver(&recInst);  // state machine function blocks if no event is available
   }
}

Nothing else is required. The generated code does not need any other runtime libraries.

Conclusions#

As you can see, it is quite simple to use generated state machine code in the context of a real-time operating system. It is also possible to run a state machine function from within an interrupt service handler. Check the manual on how to set the related generator flags.

To change the state diagram you need the Cadifra UML editor, which was used to design the example. Demo versions of Cadifra and the Sinelabore code generator are available in the download area. To compile the code you also need the Visual C++ Express Edition from Microsoft. The source code and the executable are provided for download below. After starting the executable, trace output is written to c:\trace.txt. No other output is shown on the screen.

Download the embOS example here.
